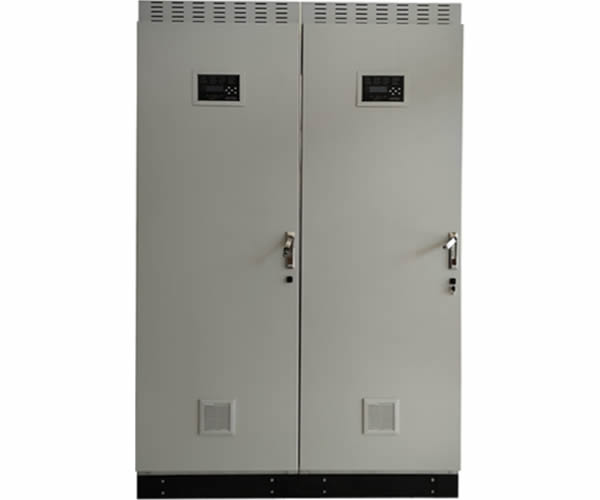

It can be designed according to the desired power and energy options in power electronic devices.
It can be designed in different ways for ups, inverter, modular structure.
For Ups, this panel includes UPS-11 and similar devices.
Powered by User-Friendly HMI options.
It can be adapted to the desired device dimensions in panels in accordance with IP standards.
| Input Characteristics | |
| Rectifier | 6/12-pulse SCR rectifier or IGBT rectifier |
| Rated input voltage | 380/400/415VAC, 4-wire (A, B, C, PE) |
| Rated operating frequency | 50Hz/60Hz |
| Input voltage range | -20%~+15% |
| Input frequency range | -10%~+10% |
| Input power factor | up to 0.95 (SCR) up to 0.99 (IGBT) |
| DC Characteristics | |
| Blocking Diode (Optional) | Inside UPS Cubicle |
| DC switch | Inside UPS Cubicle |
| Nominal voltage | 110/144/220/360VDC (or customizable voltage level) |
| Battery type | Lead acid, nickel cadmium |
| Inverter output voltage | Single-phase 110/220VAC (5-60kVA) / three-phase 380/400/415VAC (10-100kVA) |
| Output power factor | 0.8 |
| Voltage stability (Steady state) | <± 1% |
| Voltage stability (Transient) | (0-100%) <±10% |
| Transient response time | (20-150) ms |
| Inverter overload capacity | 110%: 10 minutes, 125%: 2 minutes, 150%: 10 seconds |
| THDv (100% linear load) | 3% |
| THDv (100% non-linear load) | 8% |
| Efficiency | up to 90% (depends on power rating) |
| Bypass | |
| Bypass input voltage | Single-phase 110/220VAC/ three-phase 380/400/415VAC |
| Bypass voltage range | -10%~+ 10% |
| Maintenance bypass switch | Make before break maintenance switch |
| Static Switch | |
| Frequency | 50Hz/60Hz |
| Frequency synchronization | ± 5% Hz |
| Overload capacity | 1000% 100ms |
| System | |
| Noise | 53~70dB |
| Ingress Protection | IP20 up to IP42 |
| Color | RAL7035 (other colors according to customer requirements) |
| Cable entry | Bottom (top cable entry as option) |
| HMI | It can be download from webpage |
| Communication interface | MODBUS RTU RS485 (SNMP, IEC61850, MODBUS TCP option) |
| Free contacts | Programmable 8 dry contacts from HMI |
| Operating Environment | |
| Operating temperature | Range 0 to 50 °C (constant operation at full load at 40 °C) |
| Relative humidity | 0 to 95% without condensation |
| Altitude | ≤ 1000m; above 1000m, load is derated by 1% for every increase of 100m |
